Playing-in music–HyperScribe

Transcribing a live keyboard performance.

HyperScribe makes it easy to record directly from your MIDI keyboard. Finale automatically interprets note durations by comparing your performance with the metronome click. While it requires an accurate performance, when HyperScribe is configured correctly it can represent the fastest way to enter notes.

By the end of this lesson, you will know how to:

  1. Record a performance
  2. Record into two staves

Note. To begin at this point, open "Tutorial 2.MUS." To open tutorial files, click FileOpen and double-click the "Tutorials" shortcut.

Recording a performance into one staff

When you click the HyperScribe tool and select a measure, Finale provides a metronome click. As you play along to the click, Finale notates what you play.

Before you begin, however, it’s a good idea to make a few adjustments. Live performances are never perfect, so Finale rounds-off your performance to the closest note based on how long each key is held down. Therefore:

You can play something like this...

and Finale will notate something like this.

To get better results, you can either adjust how long you hold down the keys or adjust the parameters (called Quantization Settings) that Finale is using to interpret your performance. For this exercise, let’s change our settings to ensure a more accurate performance.

To adjust the quantization settings:

  1. Choose Midi/Audio > Quantization Settings.
  2. Select the eighth note as the smallest value.
  3. Select No Tuplets.
  4. Click OK.

The Quantization Settings dialog box includes a number of other settings that you may find useful. Finale allows you to change your Quantization Settings in between recording sessions, so if you have a section with faster notes coming up, you can quickly adjust the settings and record a different passage. See Quantization for more detailed information on how to make the most of these options.

Next, let's set the tempo of the click track we will be using. By default, Finale uses the playback tempo shown in the Playback Controls as the recording tempo, so let's change that now.

To modify the recording tempo:

  1. If the Playback Controls are not showing, from the Window menu, choose Playback Controls.
  2. Click the text box next to "Tempo" and enter "90."

As long as Use Playback Tempo is selected in the Playback and/or Click dialog box (the default setting), Finale will use the Playback Control's tempo setting as the recording tempo.

  1. If you are using a MIDI controller without speakers (or, to use your computer speakers to play what you are recording), choose MIDI/Audio > Play Finale Through MIDI. Then, choose MIDI/AudioDevice Setup. If MIDI Thru is not checked, select it so it becomes checked. This allows you to hear what you play through your computer speakers.

Now we’re ready to record some music.

To record a performance with HyperScribe:

  1. Click the HyperScribe toolimage\HyperScribe_Tool.gif.
  2. Click measure 1. Finale provides two measures as a countoff. Wait three more beats and begin playing on beat 4. (HyperScribe treats the pickup as a full measure during the countoff)

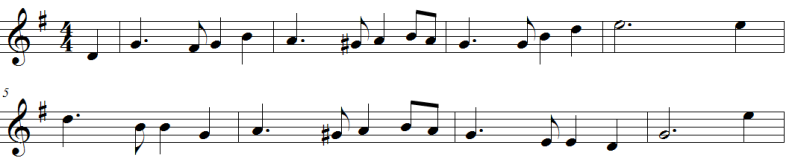

  3. Play the passage listed below (mm. 1-8 in the vocal staff). When you’re done, click outside the staff to stop recording. If notes do not appear, see MIDI Setup and Troubleshooting to ensure your MIDI system is configured properly.
  4. If you’ve made any mistakes, you can click on a measure to record over it. Editing smaller mistakes on a note-by-note basis will be covered in an upcoming section.

Watch video "Recording a performance into one staff."

Tip. The weak attack of the sound used for the Vocal staff isn't ideal for recording, especially if you are playing through your computer speakers only. To use a sound with a more assertive attack, change the playback sound of the staff to Piano for recording purposes in the Score Manager.

Note. If results from your HyperScribe recording are off consistently, for example, one eighth note late throughout, you may be experiencing MIDI latency, which is a short signal delay between your keyboard and computer. To resolve this, choose MIDI/Audio > Device SetupMIDI Setup, click Show Advanced, and enter a value between 30 and 80 for MIDI-In Latency. Click OK and try recording again. (You may need to experiment with different values until you find the one that best accommodates your MIDI system.)

Recording into two staves

One of Finale’s great time-savers is the ability to record more than one line at once with HyperScribe. This allows you to record the left and right hand of a piano part at the same time.

To record into two staves:

  1. Click the HyperScribe toolimage\HyperScribe_Tool.gif.
  2. From the HyperScribe menu, choose Record Mode > Split into Two Staves.
  3. Enter the split point "61" (middle C#). Or, click the Listen button to play C#, the note where Finale should split between the two staves. (This is the lowest note to appear in the top staff).
  4. Click OK.

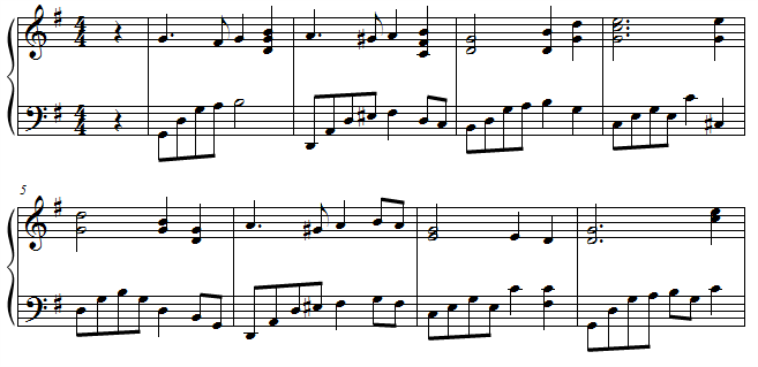

  5. Record the passage below (mm. 1-8 in the piano).

Note. In these examples, we are recording the notes from each staff that require only a single independent voice, or layer. We will be filling-in the other voices later, in the "Multiple Voices - Layers" section.

In addition to adjusting the quantization settings to improve the accuracy of a recording session, Finale allows you to adjust the tempo independent from the playback tempo. So, if you are transcribing a busy passage, you may want to record at a slower tempo (and not have to change the tempo in the Playback Controls every time you want to switch from playing back to recording).

To set the recording tempo independently from the Playback Controls:

  1. Click the HyperScribe toolimage\HyperScribe_Tool.gif..
  2. From the HyperScribe menu, choose Beat Source > Playback and/or Click.
  3. Select Use This Tempo and enter the desired recording tempo in the adjacent text box.

Notice that this window also gives you control over other aspects of your HyperScribe recording session. By default, Finale will play music from the other staves as you record. However, you can turn this feature off by unchecking Play Staves While Recording.

You can also specify the main beat duration. You may want to change this setting as well. This can be very helpful for recording passages in 6/8 where you may want the main beat to be a dotted quarter note or an eighth note depending on the tempo.

You can also adjust the number of measures that Finale gives you as a countoff.

To change the number of countoff measures:

  1. In the Playback and/or Click dialog box, click Click and Countoff.
  2. In the Measures text box, enter the desired number of countoff measures.
  3. Click OK on both windows to return to the score.

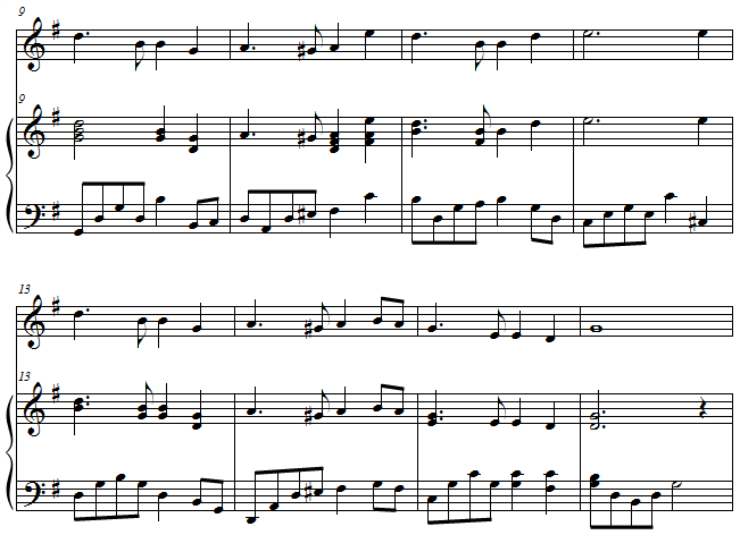

Now that you know how to adjust these settings, try transcribing the following passage (mm. 9-16 in the voice and piano). Use either Record into One Staff or Split into Two Staves.
