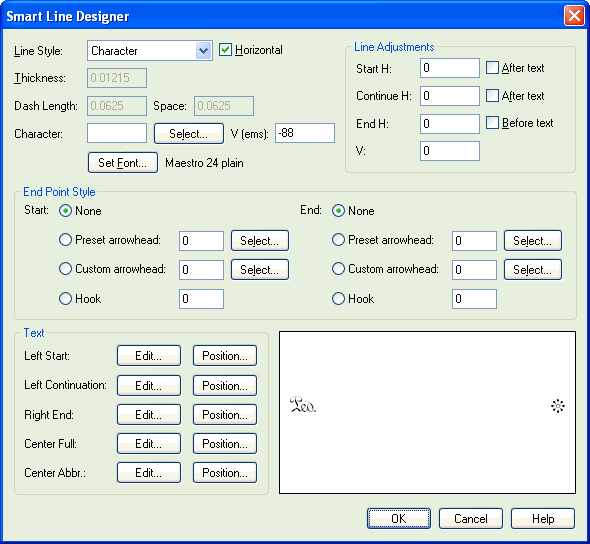

Smart Line Designer dialog box

How to get there

Click the Smart Shape Tool . Choose Smart Shape Options from the Smart Shape menu. Click Select next to Smart Line Style. Or, ctrl-click the Custom Line Tool in the Smart Shape palette.

What it does

The Smart Line Style dialog box allows you to create or edit the Smart Line Style you would like to use.

Line Style: Solid • Dashed • Character. Select the line style to be used for this item.
Horizontal. Select this option to ensure that the Smart Shape you are defining can only be placed horizontally, not diagonally.
Line Adjustments: Start H • After Text • Cont H • After Text • End H • Before Text • V. Use these settings to adjust where you lines start, continue and end, how high above or below your click point they appear, and whether the lines start, continue and end before or after any starting or ending text.
Thickness. Use this setting to modify the thickness of the dashed or solid line. This option is only available when Solid or Dashed is select from the Line Style drop-down list.
Dash Length • Space. Use these options to modify the type of dashed line being used. These options are only available when Dashed is selected from the Line Style drop-down list.
Character • Select • V(EMs) • Set Font. Set the character and the font for the item. Click Set Font to display the Font dialog box where you can select the font type, size and style. Set the vertical positioning of the baseline in Em’s (these are point size independent units). Click Select to select the actual character to use from the specified font. See Font dialog box and Symbol Selection dialog box. These options are only available when Character is selected from the Line Style drop-down list.
End Point Style: Start • End: None • Preset Arrowhead; Select • Custom Arrowhead; Select • Hook. Set the starting and ending style of the line using an arrowhead or a hook if desired. Specify the hook length in the Hook text box.
Text: Left Start • Left Continuation • Right End • Center Full • Center Abbr.; Edit • Position. Use these items to set up text combinations for the left, right and center of your custom Smart Shape. Click Edit to display the Text Edit window where you can edit you text. Click Position to set the position of the text relative to the selected line style. See Edit Text window and Position dialog box.
OK • Cancel. Click OK to confirm, or Cancel to discard, the changes you’ve made to the custom Smart Shapes. You return to the score.
