Chord Splitting Plug-in

How to get there

Select a chord in one staff with the Mass Edit Tool l. The chord must contain at least two notes and be in layer 1. From the Plug-ins menu, choose Scoring and Arranging, Composer’s Assistant, and then Chord Splitting.

What it does

The Chord Splitting plug-in creates a new staff or staves containing subsets of the original chord, each a whole note in duration. These subsets are based on harmonic targets that were implicitly contained inside the original chord. This plug-in was designed to be a composition/orchestration utility capable of automatically generating several simplified subsets of a more complex chord.

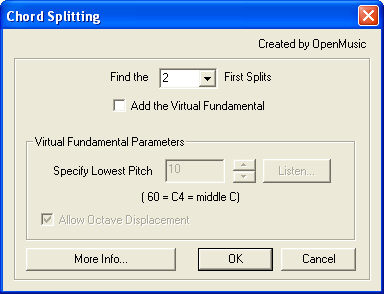

•  Find the __ first splits. The Chord Splitting plug-in has the capacity to split the chord several times at once. The results will display the split containing the smallest number of subsets first, and then a new staff for each succeeding subset.
• Add the Virtual Fundamental. Check this option to add a staff containing the virtual fundamental beneath each staff of subsets. For a definition of the Virtual Fundamental, see Virtual Fundamental Generator plug-in.
• Virtual Fundamental Parameters. Use this section to modify the parameters of the virtual fundamental. This functions the same as the Virtual Fundamental Generator plug-in.
• More Info · Cancel · OK. Click More Info for a reminder of what input this plug-in requires and a brief summary of what the plug-in does. Click Cancel to dismiss the dialog box without making any changes, or Click OK to make the selected changes.
