Harmonic analysis

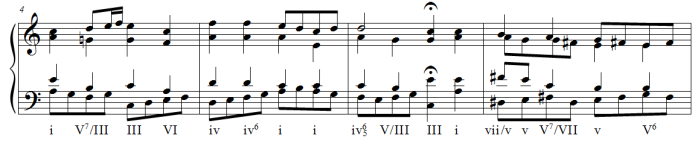

Finale allows you to easily enter harmonic analysis using the Lyrics tool with the Finale Numerics font. The Finale Numerics font was specifically designed to offer all the characters required to produce a thorough harmonic analysis, including zero-width, stackable characters, horizontal lines, musical characters, and more.

To add harmonic analysis:

  1. Choose the Lyrics tool .
  2. Choose Lyrics > Auto-Number and ensure Verse, Chorus, and Section are unchecked.
  3. Choose LyricsLyric Options and uncheck Use Smart Hyphens. Click OK.

Note. If there are already lyrics in the document, disregard step 3 above. Choose LyricsSpecify Current Lyric, and select a verse other than any verses containing lyrics, then click OK. You will be able to use the positioning triangles on the left to adjust the horizontal positioning as needed. Also, as you add your harmonic analysis, you will need to delete automatic word extensions individually. To do so, choose LyricsEdit Word Extensions, then click the word extension handle and press DELETE.

  1. Choose Lyrics > Type Into Score.
  2. Select the layer that the numerals will be attached to (ViewSelect Layer > [desired layer]).
  3. Click the first note to activate the cursor.
  4. Choose Text > Font. Choose Finale Numerics and click OK. If your font selection displays the font characters, it will look like this Finale Numerics.

Note. The Expression tool also offers other options for entering figured bass. For example, you could define expressions using the Finale Numerics font and assign them to notes using metatools. See To create an expression and To program an Expression metatool.

  1. Type the harmonic analysis (without clicking the score again). The basic figures are intuitive. For example, use v, i, V, I for the roman numerals. Type SHIFT-6 for a first inversion. ("6" is one of many zero-width characters designed to appear to the upper right of the roman numeral). To put a number beneath the 6, simply type the number (e.g. For i^4 type "i, SHIFT+6, 4"). See below for details.
Watch video "Adding Harmonic Analysis."

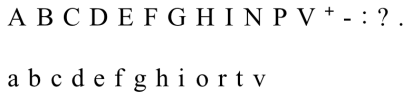

Non-zero-width (normal) characters:

These characters can be typed normally.

Zero-width characters:

Harmonic analysis often requires stacked numbers to the right of the root to specify the intervals/inversion:

Note. Some of the characters in this font have no equivalent keystrokes. In order to use some characters, you will need to copy them using your system's Character Map. See "Character Map" in your operating system's documentation for more information.

The Finale Numerics font offers zero-width number characters with convenient keystrokes. Simply type the numbers using the SHIFT (or ALT+####) modifier to specify its vertical position as follows.

To enter this example, type "I, V, SHIFT+6, 5, ALT+0162"

Note. Be sure to type the ALT numbers on your computer keyboard's numeric keypad.

Dashes

To add dashes after the numbers, press ` (tilde) and then type SHIFT+Q, Q, or ALT+0156 for the top, middle, or bottom row, respectively.

To enter the above example, type "V, SHIFT+8, 6, ` (tilde), SHIFT+Q, Q, ` (tilde), SHIFT+7, 5."

If you require a center line, type ALT+0140. You can extend the line by pressing ` (tilde) and entering another line character.

To enter the above example, type "V, SHIFT+7, X, ` (tilde), ALT+0140, ` (tilde), ALT+0140, ` (tilde), SHIFT+6, 5." (This example includes two adjacent dash characters).

Slashes

A slash through a number indicates the note should be raised a half step (opposed to a sharp preceding the number, which indicates a sharp added to that specific pitch, which could mean more than a half step).

To add a slash to a number, type SHIFT+S, S, or ALT+0223 for the top, middle, or bottom row, respectively.

To enter the above example, type "V, SHIFT+6, SHIFT+S, 5, ALT+0162."

The Finale Numerics font includes additional characters for each slashed numeral with the slashes positioned to best fit each character. These characters require less accessible keystrokes (see Finale Numerics Character Set), or can be added using your system's Character Map.

The left example is the slashed character (ALT+0224). The right is the 6 character with slash added.

Plus, minus, diminished, and half-diminished symbols

These symbols are zero-width characters designed to appear to the right of numbers. Use the following diagram to identify the appropriate keystroke for the symbol and row.

To enter the above example, type "SHIFT+4, 2, ` (tilde), SHIFT+L."

Note. The bottom row half-diminished characters have no equivalent keystrokes. In order to use these characters, you will need to copy them using your system's Character Map. See "Character Map" in your operating system's documentation for more information.

Accidentals

Accidentals can be added next to the Roman Numerals or next to the Arabic numbers.

To enter the above example, type "V, SHIFT+7, X."

To enter the above example, type "SHIFT+6, 5, ALT+0153, ` (tilde), SHIFT+Y, Y."

Carets

Type " to add a caret above an upper number. Type ' to add a caret above a middle number.

Large Numbers

Type "SHIFT+OPTION+#" to add large numbers. To add a caret to a large number, type "SHIFT+OPTION+"."

Pivot chords

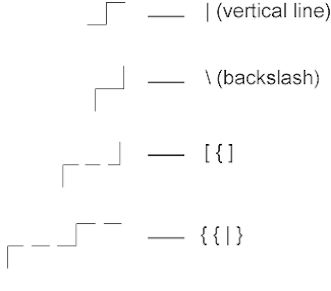

Use the | (vertical line), \ (backslash), and [, ], {, } (bracket) characters to indicate pivot chords.




To enter the above example, type "IV, | (SHIFT+\), V."

Full-size accidentals

Type >, <, n, ALT+0210, and ALT+0212 to add full-size accidentals.

Parentheses and brackets

To add parentheses or brackets around inversion numbers, enter the left bracket, press SPACEBAR, enter the number, press SPACEBAR, then enter the right bracket.
