Copy Fretboards from Chord Suffix

How to get there

Click the Chord tool $image\Chord_Tool.gif$ , choose Manual Input from the Chord menu, then click a note that doesn’t have a chord symbol attached. In the Chord Definition dialog box, click on Select in the Fretboard area.

If a note has a chord symbol attached, click the note to make the chord handle appear. Double-click the handle, click on Select in the Fretboard area. In the Fretboard Selection dialog box, click Select Suffix next to Copy Fretboards from Another Chord Suffix.

What it does

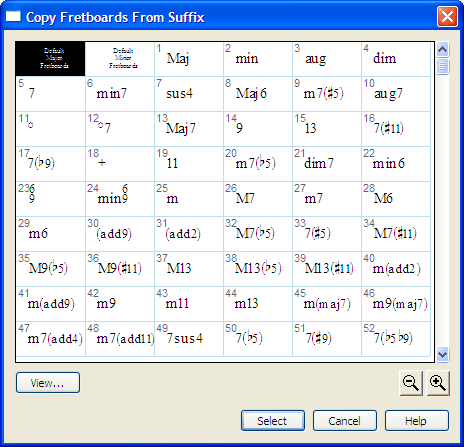

The Copy Fretboards from Suffix Selection dialog box allows you to use fretboards from other chord suffixes.

Cancel. Click Cancel to return to the Fretboard Selection dialog box without copying fretboards.
[Magnifying glass icons]. Use the magnifying glass icons to zoom in and out. Click and drag the lower right corner of the dialog box and drag to resize it.
Select. After clicking the suffix you want to use, click Select. You return to the Fretboard Selection dialog box. Instead of using the Select button, you can simply double-click the desired chord suffix.
View. Click View to see a listing of the fretboards found in the selected chord suffix.
